Новая модель Sigma-5 имеет великолепное качество, надежность и производительность. Эта модель разработана, чтобы оправдать и превзойти все ожидания пользователя от сервопривода.

Модели сервоприводов с аналоговым/импульсным управлением и MECHATROLINK-II. В качестве опции предусмотрены устройства EtherCAT
Поддержка серводвигателей с прямым приводом, линейных серводвигателей и линейных осей
Функция расширенной автонастройки
Улучшенная функция гашения вибрации
Функция встроенного аварийного останова
Частотная характеристика 1,6 кГц

Характеристики

1 фаза, 230 В

Servo drive type	SGOV- _		R7QA..A	R90A A	1R6A A	2R8A A	5R5A _A	120A_A008000
Applicable servo motor	SGMAH-		A3A_/A5A_	01A_	02A_	04A_	08A_	-
	SGMPH-		-	01A_	02A_	04A_	08A_	15A_
	SGMJV-.		A5A	01A_	02A_	04A_	08A_	-
	SGMAV-.		A5A	01A_	C2A_/02A_	04A_	06A_/08A_	10A_
	SGMEV-.		-	01A_	02A_	04A_	08A_	15A_
Basic specifications	Max. applicable motor capacity (W)		50	100	200	400	750	1500
	Continuous output current (Anns)		0.66	0.91	1.6	2.8	5.5	11.6
	Max. output current (Arms)		2.1	2.9	6.5	93	16.9	28
	Input power supply	Main circuit	Single-phase. 200 to 230 VAC +10 to -15% (50/60 Hz)
	Input power supply	Control circuit	Single-phase, 200 to 230 VAC +10 to -15% (50/60 Kz)
	Control method		Single phase full-ware rectification / IGBT / PWM / sine-wave current drire method
	Feedback		Serial encoder (increrrvental/ absolute}
	Conditions	Usage/storage temperature	0 to +55°C / -20 to +85 °C
		Usage/storage humidity	90%RH or less (non-condensing)
		Altitude	1000m or tes above sea level
		Vibration/shock resistance	4.9 m/s²/ 19.6 m/s²
	Configuration		Base mounted
	Approx, weight (kg)		0.9			1.0	1.5	2.8

3 фазы, 400 В

Servo drive type	SGDV- _		1R9D__A	3R50 __A	5R4D..A	8R4D _A	1200_A	1700 _A	2100 _/	l 2600. _A	2800 A	3700__A
Applicable servo motor	SGMAH-.		03D_	07D_	-	-	-	-	\|	-	-	-
	SGMPH-		02D_/04D_	08D_	15D_	-	-	-	-	-	-	-
	SGMGH-.		05 D_	09D_	13D_	200.	300.	440.	550.	750_	1AD.	1ED.
	SGMSH-			10D_	15D_	200.	300.	400./500		-	-	-
	SGMUH-			10D_	15D_	-	300.	400.	-	-	-	-
	SGMEV-.		02/03/04D_	07D_/08D_	15D_	-	-	-	-	-	-	-
	SGMGV-		03D_/05D_	09D_	13D_	200.	300.	440.	550.	750.	1A0.	1ED.
	SGMSV-.		-	10D_	15D_	200.	250.	400_/500_		-	-	-
Basic specifications	Max. applicable motor capacity (W)		0.5	1.0	1.5	2.0	3.0	5.0	6.0	7.5	11	15
	Continuous output current (Arms)		1,9	3,5	5.4	8.4	11.9	16.5	20.8	25.4	28.1	372
	Max. output current (Arms)		5.5	8.5	14	20	28	42	55	65	70	85
	Input power supply	Main circuit	Three-phase. 380 to 480 VAC + 10 to -15% (50-60Hz)
	Input power supply	Control circuit	24VDC +/-15%
	Control method		Three phase full-wave rectification / IGBT / PWM / sine-wave current drive method
	Feedback		Serial encoder (incrementaVabsolute)
	Conditions	Usage/storage temperature	0 to +55°C/ -20 to +85 °C
		Usage/storage humidity	90%RH or less (non-condensing)
		Altitude	1000 m or less above sea level
		Vibration/shock resistance	4.9 m/s²/19.6 m/s²
	Configuration		Base mounted
	Approx, weight (kg)		2.7			3.7		5.6	11.3		16.2

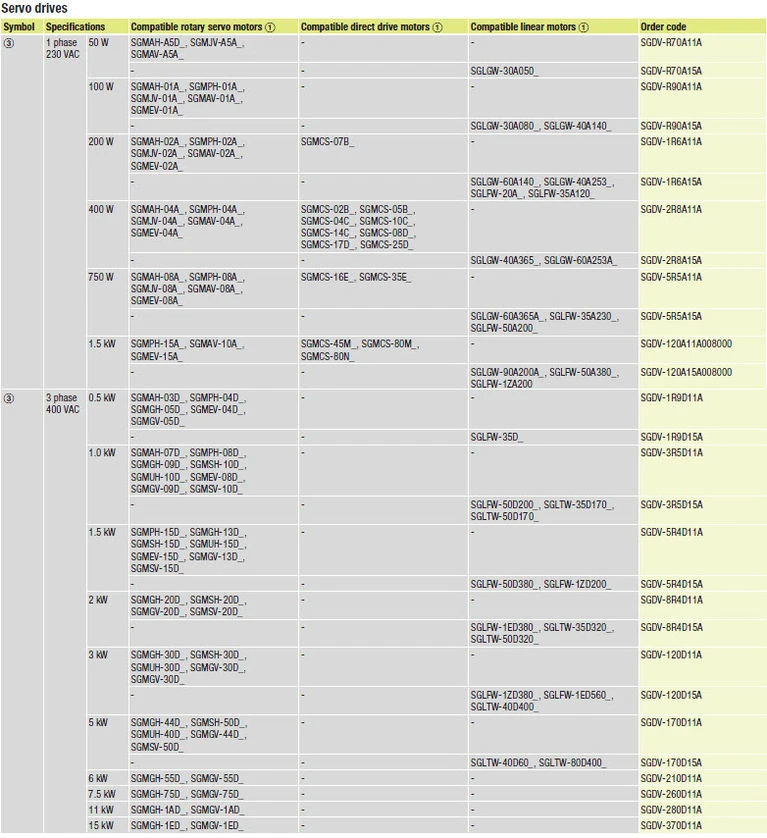

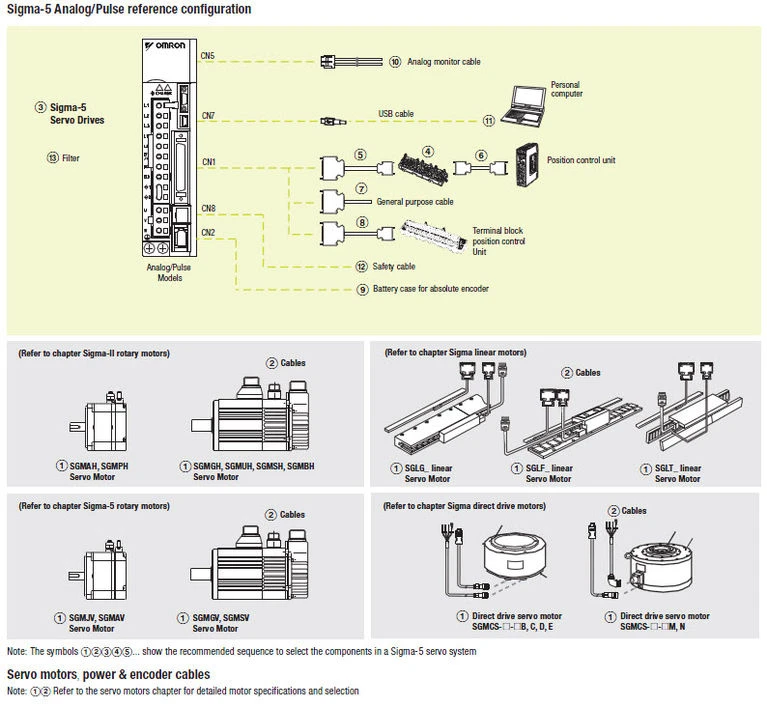

Информация для заказа

Servodrives

Symbol	Specifications		Compatible rotary serwo motors 1)	Compatible direct drive motors 1)	Compatible linear motors 1)	Order code
3)	1 phase 230 VAC	50 W	S6MAH-A5D_, SGMJV-A5A_, SGMAV-A5A_	-	-	SGW-R70A01A
		50 W	-	-	SGLGW-3GA050_	SGDV-R70A05A
		100W	SGMAH-01A_, SGMPH-01A_, SGWJV-01A_, SGMAV-01A_, SGMEV-01A_	-	-	SGDV-R90A01A
		100W	-	-	SGLGW-3QA080_, SGLGW-4CA140_	SGW-R9OA0SA
		200 W	SGMAH-02A_ . SGMPH-02A_ SGMW-02A_ . SGMAV-02A_ . SGMEV-02A_	SGMCS-07B	-	SGDV-1RSA01A
		200 W	-	-	SGLGW-6QA140 . SGLGW-4(A253 . SGlftV-20A . SGIPW-35A120	SGDV-1R6A05A
		400W	SGMAH-04A_ , SGMPH-04A_ , SGMJV-04A_ . SGMAV-04A . SGMEV-04A_	SGMCS-02B_, SGMCS-05B_ SGMCS-04C_, SGMCS-10C_ SGMCS-14C_, SGMCS-Q8D_ SGMCS-17D_, SGMCS-25D_	-	SGDV-2R8A01A
		400W	-	-	SGLGW-40A365)_ . SGLGW-60A253A_	SGDV-2R8A05A
		750 W	SGMAH-08A_ . SGMPH-08A_ , SGMJV-08A_ . SGMAV-08A_, SGMEV-08A_	SGMCS-16E_. SGMCS-35E.		SGDV-5R5A01A
		750 W	-	-	SGIGW-60A365A . SGLFW-3SA230 SGLAV-50A200_	SGDV-5R5A05A
		1.5 kW	SGMPH-15A_ . SGMAV-10A_ SGMEV-15A_	SGMCS-45M_ . SGMCS-80M_ , SGMCS-80N_	-	SGDV-12QA01A008000
		1.5 kW	-	-	SGiaV-9QA200A , SGLAV-5GA380 . SGLFW-1ZA200_	SGDV-120A05A008000
	3 phase 400 VAC	0.5 kW	SGMAH-03D .SGMPH-04D SGMGH-05D . SGMEV-04D , SGMGV-05D_			SGDV-1R9D01A
		0.5 kW	-	-	SGLFW-35D_	SGDV-1R9D05A
		1.0 kW	SGMAH-07D . SGMPH-08D , SGMGH-09D . SGMSH-10D . SGMUH-10D . SGMEV-08D SGMGV-09D_, SGMSV-10D_			SGW-3R5D01A
		1.0 kW	-	-	SGLAV-50D200_ . SGLTW-35D170_ . SGLTW-500170_	SG0V-3R5D05A
		1.5kW	SGMPH-15D , SGMGH-13D . SGMSH-15D SGMUH-15D SGMEV-15D . SGMGV-13D_, SGMSV-15D.	-	-	SG0V-5R4D01A
		1.5kW	-	-	SGLFW-50D380_. SGLFW-1ZD200_	SG0V-5R4D05A
		2 kW	SGMGH-20D . SGMSH-20D , SGMGV-20D,. SGMSV-20D.	-	-	SG0V-8R4D01A
		2 kW	-	-	SGLRV-1ED380 . SGLTW-350320 , SGLTW-500320_	SGW-8R4D05A
		3 kW	SGMGH-30D . SGMSH-30D . SGMUH-30D . SGMGV-30D_, SGMGV-30D_	‘	-	SGDV-120D01A
		5 kW	SGMGH-44D . SGMSH-500 , SGMUH-40D SGMGV-44D SGMSV-50D,	-	-	SGDV-170D01A
		5 kW	-	-	SGLTW-40D60_. SGLTW-80D400_	SGDV-170D054
		6 kW	SGMGH-55D . SGMGV-55D	-	-	SGDV-210D01A
		7.5 kW	SGMGH-75D,. SGMGV-75D_	-	-	SGDV-260D01A
		11 kW	SGMGH-1AD_. SGMGV-1AD.	-	-	SGDV-280D01A
		15 kW	SGMGH-1ED_, SGMGV-1ED_	-	-	SGDV-370D01A

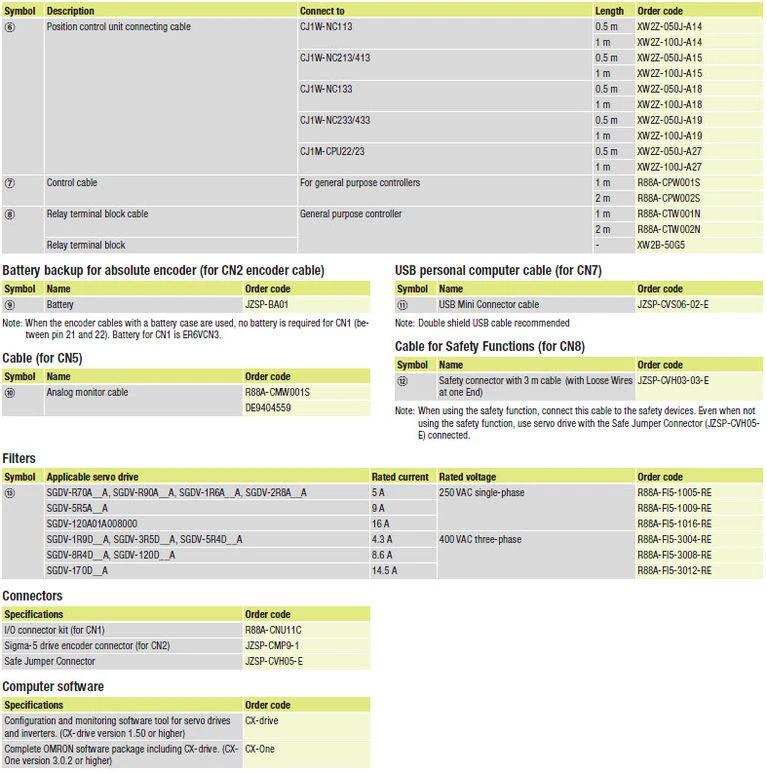

Controls cabel ( for CN1)

Symbol	Description	Connect to	Length	Order code
3)	Servo гelay unit	CJ1W-NC1_3		XW2B-20J6-1B (1 axis)
		CJ1W-NC2_3/4_3		XW2B-40J6-2B (2 axis)
		CJ1M-CPU22/23		XW28-20J6-8A (1 axis) XW2B-40J6-9A (2 axis)
4)	Cabte to servo drive	Servo relay units XW28-_0J6-_B	1 m	XW2Z-100J-B4
4)	Cabte to servo drive	Servo relay units XW28-_0J6-_B	2 m	XW2Z-200J-B4

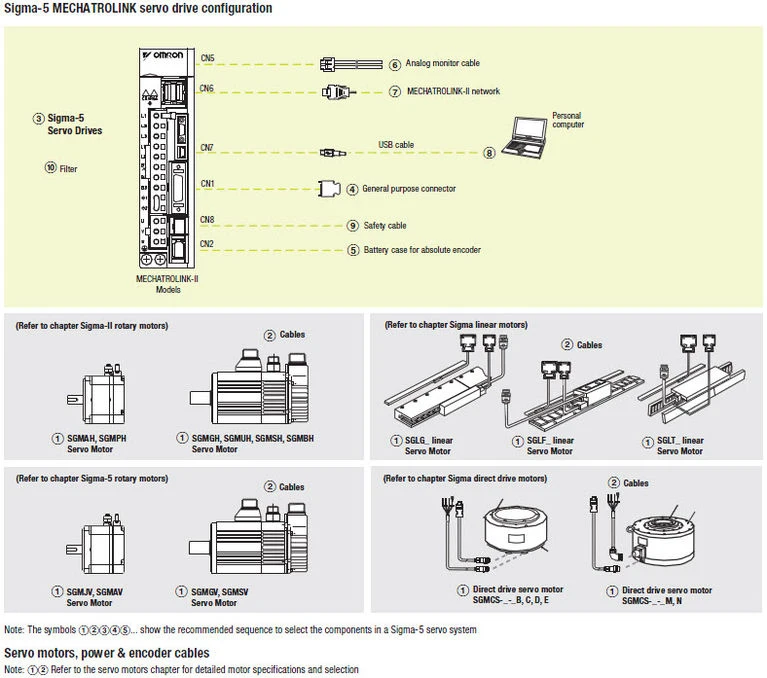

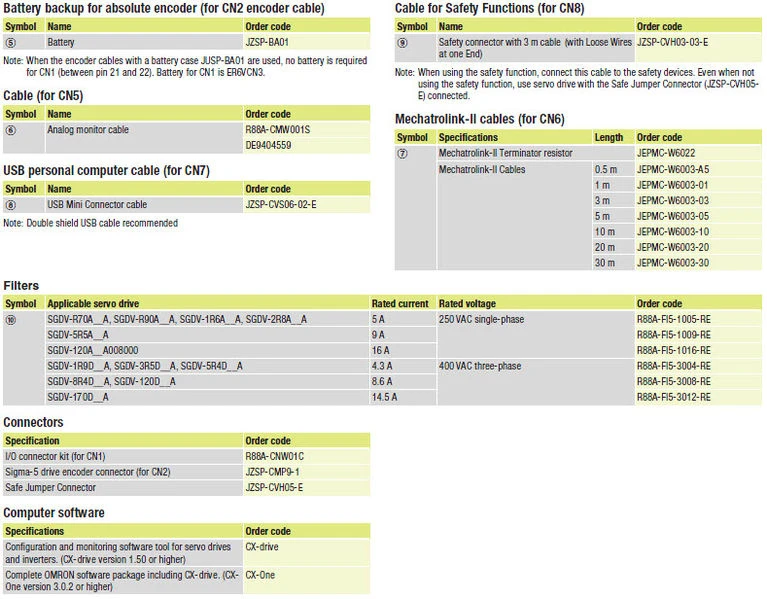

Sigma 5 MECHATROLINK servo drive configuration
