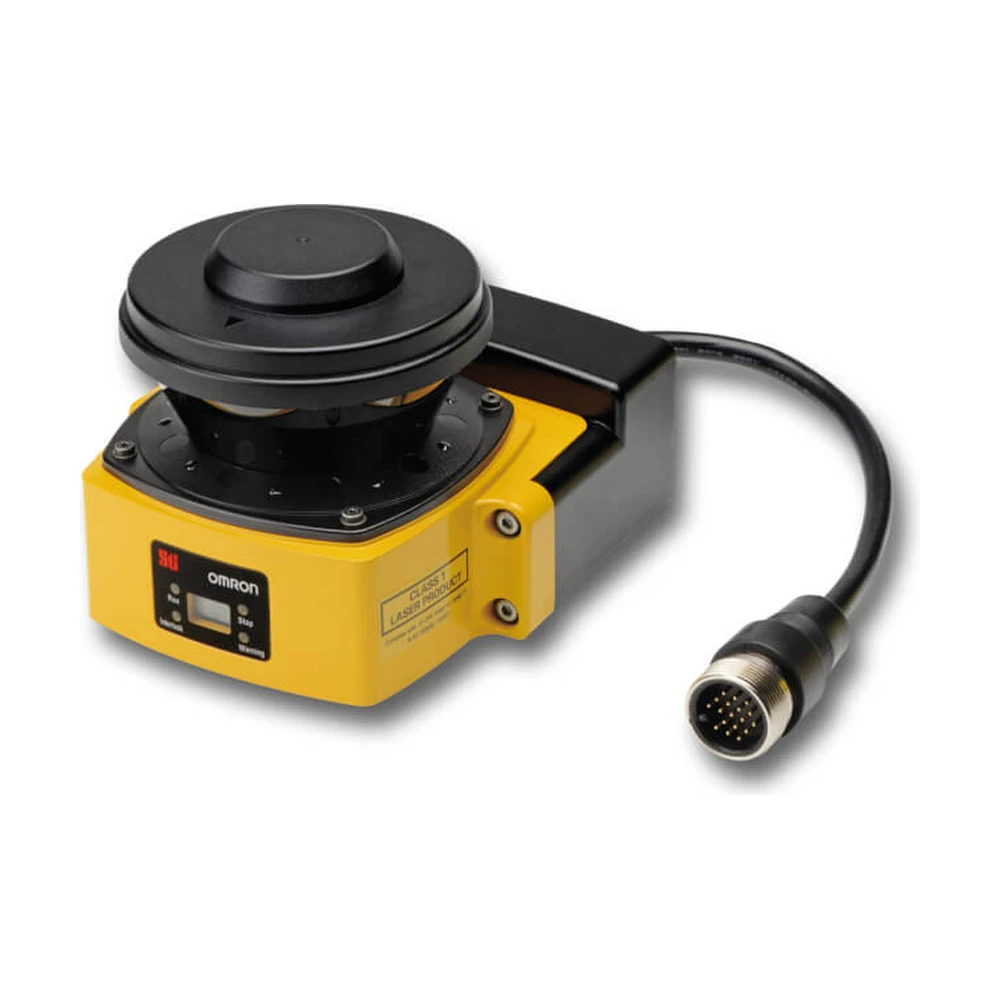

Для увеличения времени работы автоматически управляемых тележек от аккумуляторных батарей требуются компактные размеры, небольшая масса и низкое потребление энергии устройством. Лазерный сканер OS32C отвечает всем этим требованиям при использовании для предотвращения столкновений и определения наличия препятствий перед машинами и позади них. Выполнение технического обслуживания облегчается за счет вывода точной информации на светодиодный дисплей.

Лазерный сканер соответствует типу 3 согласно требованиям стандарта IEC61496-1/-3
70 комбинаций зон безопасности и зон предупреждения
Зона безопасности - до 4 м, зона(ы) предупреждения - до 15 м.
8 индикаторов отдельных секторов и различные светодиодные индикаторы для отображения состояния устройства
Функция условной границы предотвращает несанкционированное изменение положения сканера

Заказная информация

Description	Max. operating range	Order code
OS32C with back location cable entry	3 m	OS32C-BP
OS32C with back location cable entry	4 m	OS32C-BP-4M
OS32C with side location cable entry	3 m	OS32C-SP1
OS32C with side location cable entry	4 m	OS32C-SP1-4M
OS32C with back location cable entry EtherNet/IP capable for status measurement data reporting	3 m	OS32C-BP-DM
	4 m	OS32C-BP-DM-4M
OS32C with side location cable entry EtherNet/IP capable for status measurement data reporting	3 m	OS32C-SP1-DM
	4 m	OS32C-SP1-DM-4M

Description	Remarks	Order code
Configuration tool	CD-ROM OS supported: Windows 2000, XP, Vista, Windows 7	included

Характеристики

Sensors

Sensor type		Type 3 safety laser scanner
Safety category		Category 3, performance level d (ISO13849-1: 2006)
Detection capability		Configurable; Non-transparent with a diameter of 30, 40, 50 or 70 mm (1.8% reflectivity or greater)
Monitoring zone		Monitoring zone set count: (Safety zone + 2 warning zones) x 70 sets
Operating range		Safety Zone: 4.0 m (min. obj. resolution of 70mm, only OS32C-_-4M types) 3.0 m (min. obj. resolution of 50 mm or 70 mm) 2.5 m (min. obj. resolution of 40 mm) 1.75 m (min. obj. resolution of 30 mm) Warning Zone: 10.0 m (15.0 m for OS32C-_-4M types)
Detection angle		270°
Response time		Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (configurable)
Line voltage		24 VDC +25%/-30% (ripple p-p 2.5 V max.)
Power consumption		Normal operation: 5 W max., 4 W typical (without output load) Standby mode: 3.75 W (without output load)
Safety output (OSSD)		PNP transistor x 2, load current of 250mA max., residual voltage of 2 V max., load capacity of 2.2 µf max., leak current of 1 mA max.
Auxiliary output (Non-safety)		NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max.
Warning output (Non-safety)		NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max.
Output operation mode		Auto start, start interlock, start/restart interlock
Input	External Device Monitoring (EDM)	ON: 0 V short (input current of 50 mA), OFF: Open
	Start	ON: 0 V short (input current of 20 mA), OFF: Open
	Zone select	ON: 24 V short (input current of 5 mA), OFF: Open
	Stand-by	ON: 24 V short (input current of 5 mA), OFF: Open
Connection type		Power cable: 18-pin mini-connector (pigtail) Communication cable: M12, 4-pin connector
Connection with PC		Communication: EtherNet/IP
Indicators		RUN indicator: Green, STOP indicator: Red, Interlock indicator: Yellow, Warning output indicator: Orange, Status/diagnostic display: 2 x 7-segment LEDs, Intrusion indicators: Red LED x 8
Enclosure rating		IP65 (IEC60529)
Dimensions (W x H x D)		133.0 x 104.5 x 142.7 mm (except cable)
Weight (Main Unit only)		1.3 kg
Approvals		Certified by: TÜV Rheinland, UL Major standards: IEC61496-1/-3 (Type 3), IEC61508 (SIL2), ISO13849-1:2008 (Category 3, performance level d), UL508, UL1998

Аксессуары (продаются отдельно)

Power cable

Description	Remarks	Order code
Cable length: 3 m	One cable is required per sensor	OS32C-CBL-03M
Cable length: 10 m		OS32C-CBL-10M
Cable length: 20 m		OS32C-CBL-20M
Cable length: 30 m		OS32C-CBL-30M

Ethernet cable

Description	Remarks	Order code
Cable length: 2 m	Required for configuration and monitoring	OS32C-ECBL-02M
Cable length: 5 m		OS32C-ECBL-05M
Cable length: 15 m		OS32C-ECBL-15M

Mounting brackets

Description	Remarks	Order code
Bottom/side mounting bracket	Bottom/side mounting bracket x 1, unit mounting screws x 4 sets	OS32C-BKT1
XY axis rotation mounting bracket	XY axis rotation mounting bracket x 1, unit mounting screws x 6 sets, bracket mounting screws x 1 set (must be used with OS32C-BKT1)	OS32C-BKT2
Simple mounting bracket	Simple mounting brackets x 2, unit mounting screws x 4 sets	OS32C-BKT3
Protective cover for window		OS32C-BKT4
Mounting stand	When using a mounting stand, use an OS32C with side location cable entry (OS32C-SP1). The OS32C with back location cable entry (OS32C-BP) cannot be mounted. Use with mounting brackets (OS32C-BKT1 and OS32C-BKT2).	OS32C-MT
Hardware kit for mounting stand	Mounting screws x 3 sets Use this when mounting a bracket to the mounting stand.	OS32C-HDT

Miscellaneous

Description		Remarks	Order code
Scan window		Spare for replacement	OS32C-WIN-KT
Sensor block without I/O block Max. operating range: 3 m		Spare for replacement	OS32C-SN
Sensor block without I/O block Max. operating range: 4 m		Spare for replacement	OS32C-SN-4M
Sensor block without I/O block for EtherNet/IP Max. operating range: 3 m		Spare replacement for EtherNet/IP	OS32C-SN-DM
Sensor block without I/O block for EtherNet/IP Max. operating range: 4 m		Spare replacement for EtherNet/IP	OS32C-SN-DM-4M
I/O block	With cable access from the back	Spare for replacement	OS32C-CBBP
I/O block	With cable access from the left side	Spare for replacement	OS32C-CBSP1
Window cleaning kit, anti-static cleaner		Accessory	WIN-CLN-KT
