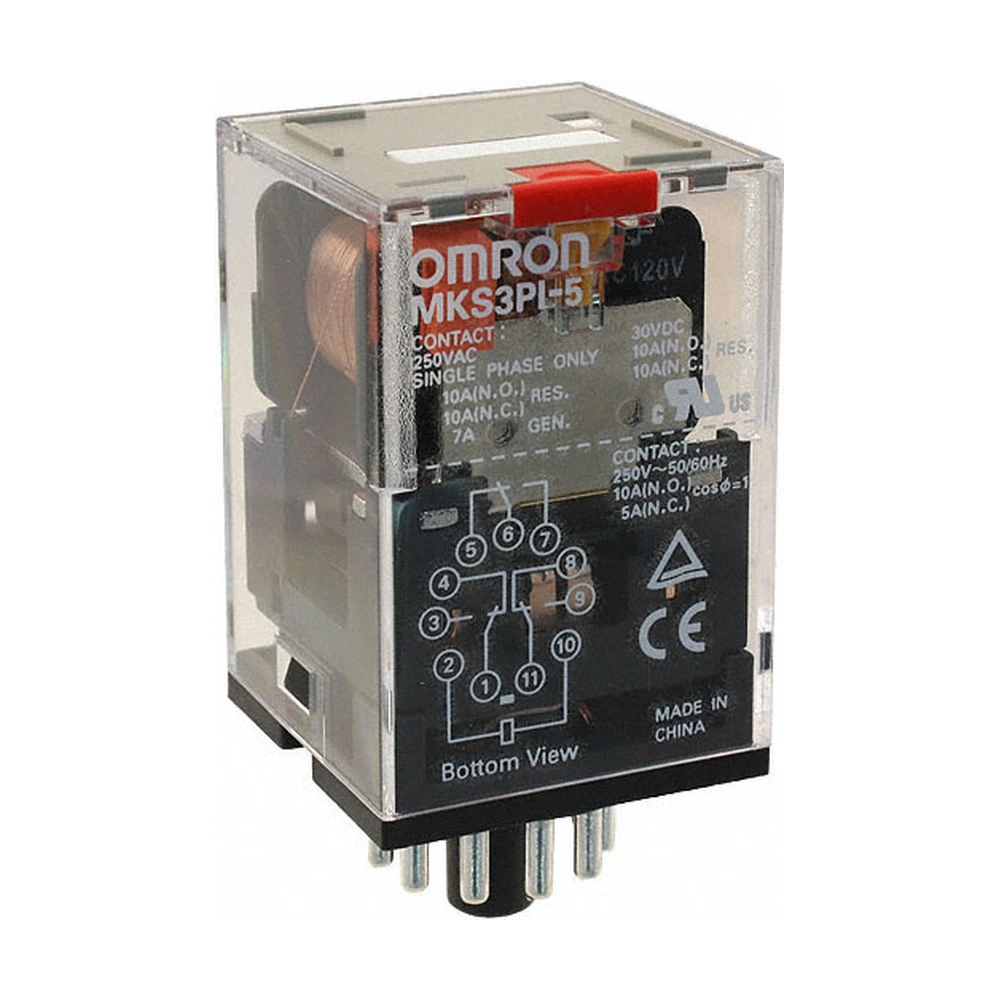

Тип	Разъем	Контакты	Внутреннее подключение	С механическим индикатором	С механическим индикатором и тестовой кнопкой	Катушка
Standard Models	Plug-in	DPDT	Standard	MKS2P	MKS2PI	AC/DC
		DPDT	Non-standard	MKS2P-2	MKS2PI-2
		3PDT	Standard	MKS3P	MKS3PI
			Non-Standard	MKS3P-2	MKS3PI-2
			Non-Standard	MKS3P-5	MKS3PI-5
Models with LED Indicator		DPDT	Standard	MKS2PN(1)	MKS2PIN(1)	AC/DC
		DPDT	Non-standard	MKS2PN(1)-2	MKS2PIN(1)-2
		3PDT	Standard	MKS3PN(1)	MKS3PIN(1)
			Non-Standard	MKS3PN(1)-2	MKS3PIN(1)-2
			Non-Standard	MKS3PN(1)-5	MKS3PIN(1)-5
Models with Diode		DPDT	Standard	MKS2P(1)-D	MKS2PI(1)-D	DC
		DPDT	Non-standard	MKS2P(1)-D-2	MKS2PI(1)-D-2
		3PDT	Standard	MKS3P(1)-D	MKS3PI(1)-D
			Non-Standard	MKS3P(1)-D-2	MKS3PI(1)-D-2
			Non-Standard	MKS3P(1)-D-5	MKS3PI(1)-D-5
Models with LED Indicator and Diode		DPDT	Standard	MKS2PN-D	MKS2PIN-D	DC
		DPDT	Non-standard	MKS2PN-D-2	MKS2PIN-D-2
		3PDT	Standard	MKS3PN-D	MKS3PIN-D
			Non-Standard	MKS3PN-D-2	MKS3PIN-D-2
			Non-Standard	MKS3PN-D-5	MKS3PIN-D-5
Models with Varistor		DPDT	Standard	MKS2P-V	MKS2PI-V	AC
		DPDT	Non-standard	MKS2P-V-2	MKS2PI-V-2
		3PDT	Standard	MKS3P-V	MKS3PI-V
			Non-Standard	MKS3P-V-2	MKS3PI-V-2
			Non-Standard	MKS3P-V-5	MKS3PI-V-5
Models with LED Indicator and Varistor		DPDT	Standard	MKS2PN-V	MKS2PIN-V	AC
		DPDT	Non-standard	MKS2PN-V-2	MKS2PIN-V-2
		3PDT	Standard	MKS3PN-V	MKS3PIN-V
			Non-Standard	MKS3PN-V-2	MKS3PIN-V-2
			Non-Standard	MKS3PN-V-5	MKS3PIN-V-5

При заказе реле в конце заказного кода добавляйте напряжение питания катушки реле^ MKS3PN-V-5 24 VDC

Катушка реле на постоянном токе может иметь два типа: стандартная полярность катушки и реверсивная полярность катушки. Смотрите в документации схему подключения.

Дополнительные опции и аксессуары

Монтажные колодки (розетки для подключения реле)

Item	Тип	Модель
Track-mounted Socket	8-pin	PF083A-E
	11-pin	PF113A-E
	8-pin	PF083A-D
	11-pin	PF113A-D
Hold-down Clip (For PF083A-E and PF113A-E)		PFC-A1

Характеристики

Rated voltage		Must operate voltage	Must release voltage	Max. voltage	Power consumption (approx.)
Rated voltage		% of rated voltage			Power consumption (approx.)
AC	6 V, 12 V, 24 V, 100 V, 110 V, 120 V, 200 V, 220 V, 230 V, 240 V	80% max.	30% min.	110%	2.3 VA (60 Hz)
AC			30% min.		2.7 VA (50 Hz)
DC	6 V, 12 V, 24 V, 48 V, 100 V, 110 V		15% min.		1.4 W

Contact ratings

Load	2- or 3-pole
Load	Resistive load (cosϕ = 1)	Inductive load (cosϕ = 0.4; L/R = 7)
Contact material	AgSnIn
Rated load	NO: 10 A at 250 VAC NC: 5 A at 30 VDC	7 A at 250 VAC
Rated carry current	10 A
Max. switching voltage	250 VAC, 250 VDC	-
Max. switching current	10 A
Max. switching power	2,500 VA/ 300 W	1,250 VA/150 W
Mechanical life	5,000,000 operations min.
Electrical life	100.000 operations min.

Technical data

Operating time	AC: 20 ms max., DC: 30 ms max.
Release time	20 ms max. (40 ms max. for built-in Diode relays)
Dielectric strength	2,500 VAC (coil-contact)
Ambient temperature	Operating: -40 to 60°C (with no icing or condensation)
Size in mm (HxWxD)	34.5x34.5x53.3

Dimension relay & socket

Type	Size in mm (HxWxD)
PF083A-E + MKS	56x41x77.8 (incl. clip)
PF113A-E + MKS	56x42.8x87.8 (incl. clip)
PF___A-D + MKS	65x38x80.3
